seata-server启动 ​

4.0 版本开始，DATASOURCE模式的(acuity-cloud-pro-datasource-column项目)某些操作已经无法避免同时操作 acuity_defaults 库 和 acuity_base_{TenantId} ，所以为了保证分布式事务准确性，acuity-cloud-pro-datasource-column项目集成了Seata来保证分布式事务准确性，其他模式无需Seata。

  • 注意：seata官方仅支持MySQL、Oracle、Postgresql，不支持SQL Server，所以导致天源云项目的DATASOURCE模式也不支持SQL Server，column和none模式不受影响。

官方文档： https://seata.io/ ​

安装&启动： ​

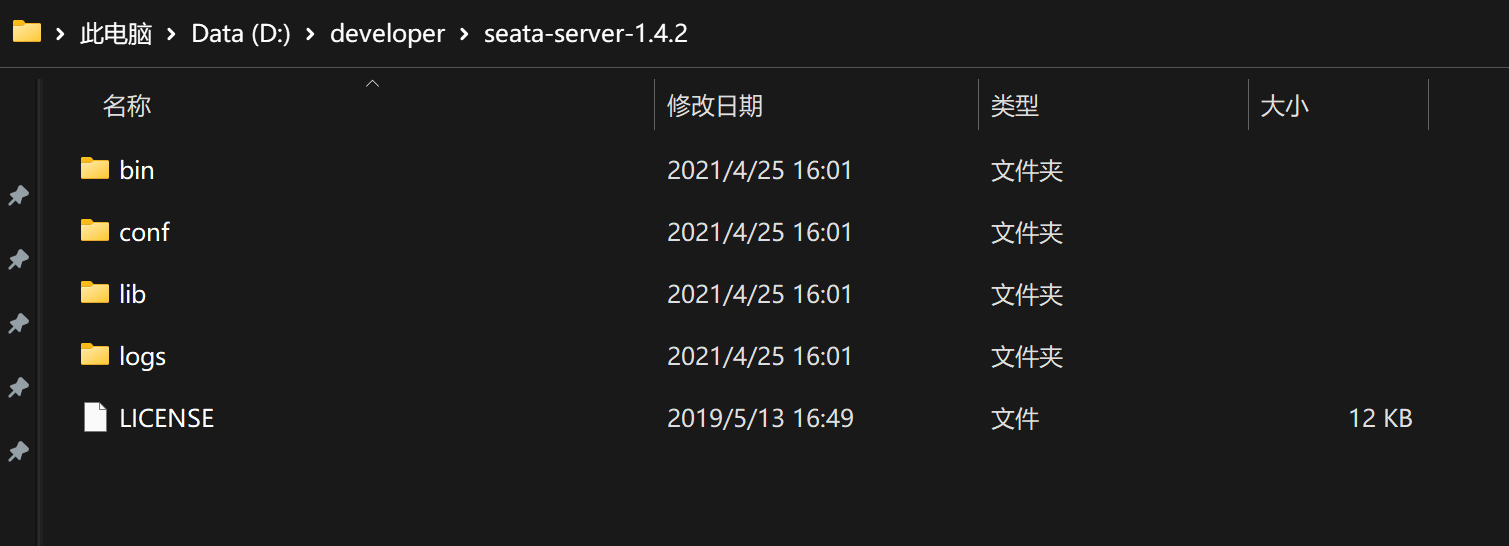

  1. 官网 下载 1.4.2 版 或者去群文件下载 seata142.zip , 解压到 D:\developer\seata-server-1.4.2（群文件里面的配置已经调整过了） 。

    seata 版本一定要一致！！！

  2. 创建数据库

    sql
    CREATE DATABASE `acuity_seata` CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci;
    CREATE DATABASE `acuity_seata` CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci;

  3. 向acuity_seata库 导入 script/server/db/mysql.sql

    sql
    -- -------------------------------- The script used when storeMode is 'db' --------------------------------
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS `global_table`
(
 `xid`                       VARCHAR(128) NOT NULL,
 `transaction_id`            BIGINT,
 `status`                    TINYINT      NOT NULL,
 `application_id`            VARCHAR(32),
 `transaction_service_group` VARCHAR(32),
 `transaction_name`          VARCHAR(128),
 `timeout`                   INT,
 `begin_time`                BIGINT,
 `application_data`          VARCHAR(2000),
 `gmt_create`                DATETIME,
 `gmt_modified`              DATETIME,
 PRIMARY KEY (`xid`),
 KEY `idx_gmt_modified_status` (`gmt_modified`, `status`),
 KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8;

 -- the table to store BranchSession data
 CREATE TABLE IF NOT EXISTS `branch_table`
 (
     `branch_id`         BIGINT       NOT NULL,
     `xid`               VARCHAR(128) NOT NULL,
     `transaction_id`    BIGINT,
     `resource_group_id` VARCHAR(32),
     `resource_id`       VARCHAR(256),
     `branch_type`       VARCHAR(8),
     `status`            TINYINT,
     `client_id`         VARCHAR(64),
     `application_data`  VARCHAR(2000),
     `gmt_create`        DATETIME(6),
     `gmt_modified`      DATETIME(6),
     PRIMARY KEY (`branch_id`),
     KEY `idx_xid` (`xid`)
 ) ENGINE = InnoDB
   DEFAULT CHARSET = utf8;

 -- the table to store lock data
 CREATE TABLE IF NOT EXISTS `lock_table`
 (
     `row_key`        VARCHAR(128) NOT NULL,
     `xid`            VARCHAR(128),
     `transaction_id` BIGINT,
     `branch_id`      BIGINT       NOT NULL,
     `resource_id`    VARCHAR(256),
     `table_name`     VARCHAR(32),
     `pk`             VARCHAR(36),
     `gmt_create`     DATETIME,
     `gmt_modified`   DATETIME,
     PRIMARY KEY (`row_key`),
     KEY `idx_branch_id` (`branch_id`)
 ) ENGINE = InnoDB
   DEFAULT CHARSET = utf8;

 CREATE TABLE IF NOT EXISTS `distributed_lock`
 (
     `lock_key`       CHAR(20) NOT NULL,
     `lock_value`     VARCHAR(20) NOT NULL,
     `expire`         BIGINT,
     primary key (`lock_key`)
 ) ENGINE = InnoDB
   DEFAULT CHARSET = utf8mb4;

 INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('AsyncCommitting', ' ', 0);
 INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryCommitting', ' ', 0);
 INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryRollbacking', ' ', 0);
 INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('TxTimeoutCheck', ' ', 0);
    -- -------------------------------- The script used when storeMode is 'db' --------------------------------
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS `global_table`
(
 `xid`                       VARCHAR(128) NOT NULL,
 `transaction_id`            BIGINT,
 `status`                    TINYINT      NOT NULL,
 `application_id`            VARCHAR(32),
 `transaction_service_group` VARCHAR(32),
 `transaction_name`          VARCHAR(128),
 `timeout`                   INT,
 `begin_time`                BIGINT,
 `application_data`          VARCHAR(2000),
 `gmt_create`                DATETIME,
 `gmt_modified`              DATETIME,
 PRIMARY KEY (`xid`),
 KEY `idx_gmt_modified_status` (`gmt_modified`, `status`),
 KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8;

 -- the table to store BranchSession data
 CREATE TABLE IF NOT EXISTS `branch_table`
 (
     `branch_id`         BIGINT       NOT NULL,
     `xid`               VARCHAR(128) NOT NULL,
     `transaction_id`    BIGINT,
     `resource_group_id` VARCHAR(32),
     `resource_id`       VARCHAR(256),
     `branch_type`       VARCHAR(8),
     `status`            TINYINT,
     `client_id`         VARCHAR(64),
     `application_data`  VARCHAR(2000),
     `gmt_create`        DATETIME(6),
     `gmt_modified`      DATETIME(6),
     PRIMARY KEY (`branch_id`),
     KEY `idx_xid` (`xid`)
 ) ENGINE = InnoDB
   DEFAULT CHARSET = utf8;

 -- the table to store lock data
 CREATE TABLE IF NOT EXISTS `lock_table`
 (
     `row_key`        VARCHAR(128) NOT NULL,
     `xid`            VARCHAR(128),
     `transaction_id` BIGINT,
     `branch_id`      BIGINT       NOT NULL,
     `resource_id`    VARCHAR(256),
     `table_name`     VARCHAR(32),
     `pk`             VARCHAR(36),
     `gmt_create`     DATETIME,
     `gmt_modified`   DATETIME,
     PRIMARY KEY (`row_key`),
     KEY `idx_branch_id` (`branch_id`)
 ) ENGINE = InnoDB
   DEFAULT CHARSET = utf8;

 CREATE TABLE IF NOT EXISTS `distributed_lock`
 (
     `lock_key`       CHAR(20) NOT NULL,
     `lock_value`     VARCHAR(20) NOT NULL,
     `expire`         BIGINT,
     primary key (`lock_key`)
 ) ENGINE = InnoDB
   DEFAULT CHARSET = utf8mb4;

 INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('AsyncCommitting', ' ', 0);
 INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryCommitting', ' ', 0);
 INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryRollbacking', ' ', 0);
 INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('TxTimeoutCheck', ' ', 0);

  4. 修改安装包 D:\developer\seata-server-1.4.2\conf/registry.conf 文件内容:

    json
    registry {
  type = "nacos"
  nacos {
    application = "seata-server"
    serverAddr = "localhost:8848"            # nacos 地址
    group = "SEATA_GROUP"
    namespace = "3cca7d98-3b1c-44d3-90e5-86abaaf0048a"    # 命名空间不要和acuity-cloud项目使用的混淆了
    cluster = "default"
    username = "nacos"
    password = "nacos"
  }
}
config {
  type = "nacos"
  nacos {
    serverAddr = "localhost:8848"              # nacos 地址
    namespace = "3cca7d98-3b1c-44d3-90e5-86abaaf0048a"
    group = "SEATA_GROUP"
    username = "nacos"
    password = "nacos"
    dataId = "seataServer.properties"
  }
}
    registry {
  type = "nacos"
  nacos {
    application = "seata-server"
    serverAddr = "localhost:8848"            # nacos 地址
    group = "SEATA_GROUP"
    namespace = "3cca7d98-3b1c-44d3-90e5-86abaaf0048a"    # 命名空间不要和acuity-cloud项目使用的混淆了
    cluster = "default"
    username = "nacos"
    password = "nacos"
  }
}
config {
  type = "nacos"
  nacos {
    serverAddr = "localhost:8848"              # nacos 地址
    namespace = "3cca7d98-3b1c-44d3-90e5-86abaaf0048a"
    group = "SEATA_GROUP"
    username = "nacos"
    password = "nacos"
    dataId = "seataServer.properties"
  }
}

  5. 将 https://github.com/seata/seata/blob/develop/script/config-center/config.txt 文件下载下来，并调整config.txt文件中的参数：

    properties
     # seata service 信息
 service.vgroupMapping.acuity_cloud_seata_tx_group=default
 service.default.grouplist=127.0.0.1:8091

 # 数据库信息
 store.db.dbType=mysql
 store.db.driverClassName=com.mysql.cj.jdbc.Driver
 store.db.url=jdbc:mysql://172.26.3.32:3306/acuity_seata?useUnicode=true&rewriteBatchedStatements=true
 store.db.user=root
 store.db.password=root

 # 修改序列化方式， 使seata支持LocalDateTime字段
 client.undo.logSerialization=protostuff
     # seata service 信息
 service.vgroupMapping.acuity_cloud_seata_tx_group=default
 service.default.grouplist=127.0.0.1:8091

 # 数据库信息
 store.db.dbType=mysql
 store.db.driverClassName=com.mysql.cj.jdbc.Driver
 store.db.url=jdbc:mysql://172.26.3.32:3306/acuity_seata?useUnicode=true&rewriteBatchedStatements=true
 store.db.user=root
 store.db.password=root

 # 修改序列化方式， 使seata支持LocalDateTime字段
 client.undo.logSerialization=protostuff

  6. 在naocs中新建命名空间

    • 命名空间ID：3cca7d98-3b1c-44d3-90e5-86abaaf0048a
    • 命名空间名: acuity-seata
    • 描述: acuity-cloud 分布式事务

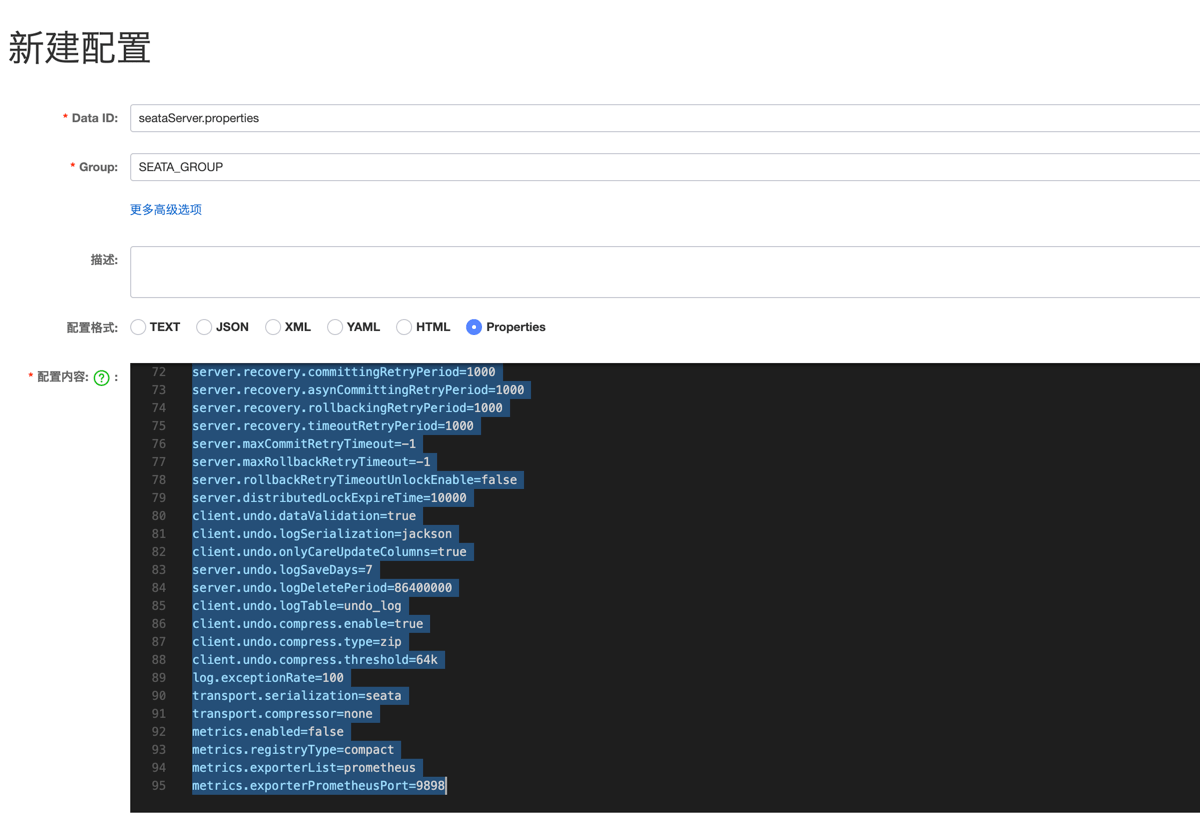

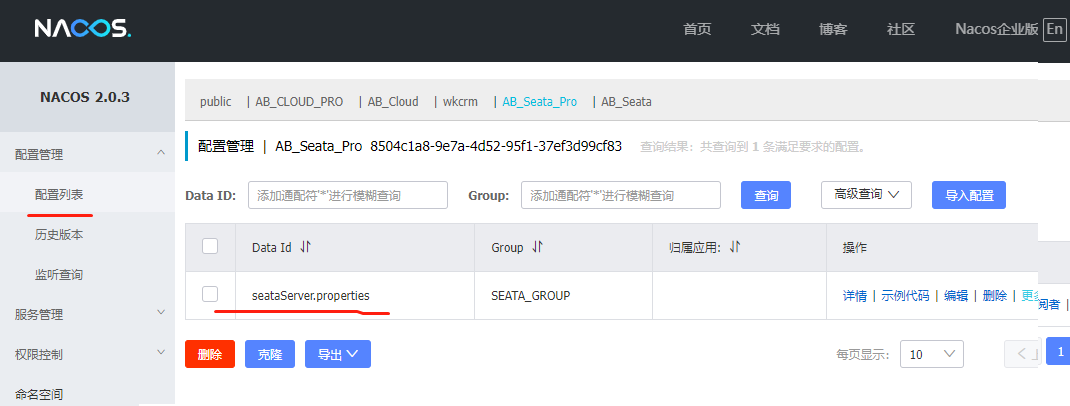

  7. 在新建的命名空间中新增配置： seataServer.properties， 并将修改后的 config.txt 文件中的内容复制进来。

    注意正确填写 DataId 和 Group ！

  8. seataServer.properties 全部内容：

    properties
    transport.type=TCP
transport.server=NIO
transport.heartbeat=true
transport.enableClientBatchSendRequest=true
transport.threadFactory.bossThreadPrefix=NettyBoss
transport.threadFactory.workerThreadPrefix=NettyServerNIOWorker
transport.threadFactory.serverExecutorThreadPrefix=NettyServerBizHandler
transport.threadFactory.shareBossWorker=false
transport.threadFactory.clientSelectorThreadPrefix=NettyClientSelector
transport.threadFactory.clientSelectorThreadSize=1
transport.threadFactory.clientWorkerThreadPrefix=NettyClientWorkerThread
transport.threadFactory.bossThreadSize=1
transport.threadFactory.workerThreadSize=default
transport.shutdown.wait=3
service.vgroupMapping.acuity_cloud_seata_tx_group=default
service.default.grouplist=127.0.0.1:8091
service.enableDegrade=false
service.disableGlobalTransaction=false
client.rm.asyncCommitBufferLimit=10000
client.rm.lock.retryInterval=10
client.rm.lock.retryTimes=30
client.rm.lock.retryPolicyBranchRollbackOnConflict=true
client.rm.reportRetryCount=5
client.rm.tableMetaCheckEnable=false
client.rm.tableMetaCheckerInterval=60000
client.rm.sqlParserType=druid
client.rm.reportSuccessEnable=false
client.rm.sagaBranchRegisterEnable=false
client.rm.tccActionInterceptorOrder=-2147482648
client.tm.commitRetryCount=5
client.tm.rollbackRetryCount=5
client.tm.defaultGlobalTransactionTimeout=60000
client.tm.degradeCheck=false
client.tm.degradeCheckAllowTimes=10
client.tm.degradeCheckPeriod=2000
client.tm.interceptorOrder=-2147482648
store.mode=db
store.lock.mode=file
store.session.mode=file
store.publicKey=
store.file.dir=file_store/data
store.file.maxBranchSessionSize=16384
store.file.maxGlobalSessionSize=512
store.file.fileWriteBufferCacheSize=16384
store.file.flushDiskMode=async
store.file.sessionReloadReadSize=100
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.cj.jdbc.Driver
store.db.url=jdbc:mysql://127.0.0.1:3306/acuity_seata?useUnicode=true&rewriteBatchedStatements=true
store.db.user=root
store.db.password=root
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.distributedLockTable=distributed_lock
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000
store.redis.mode=single
store.redis.single.host=127.0.0.1
store.redis.single.port=6379
store.redis.sentinel.masterName=
store.redis.sentinel.sentinelHosts=
store.redis.maxConn=10
store.redis.minConn=1
store.redis.maxTotal=100
store.redis.database=0
store.redis.password=
store.redis.queryLimit=100
server.recovery.committingRetryPeriod=1000
server.recovery.asynCommittingRetryPeriod=1000
server.recovery.rollbackingRetryPeriod=1000
server.recovery.timeoutRetryPeriod=1000
server.maxCommitRetryTimeout=-1
server.maxRollbackRetryTimeout=-1
server.rollbackRetryTimeoutUnlockEnable=false
server.distributedLockExpireTime=10000
client.undo.dataValidation=true
client.undo.logSerialization=jackson
client.undo.onlyCareUpdateColumns=true
server.undo.logSaveDays=7
server.undo.logDeletePeriod=86400000
client.undo.logTable=undo_log
client.undo.compress.enable=true
client.undo.compress.type=zip
client.undo.compress.threshold=64k
log.exceptionRate=100
transport.serialization=seata
transport.compressor=none
metrics.enabled=false
metrics.registryType=compact
metrics.exporterList=prometheus
metrics.exporterPrometheusPort=9898
    transport.type=TCP
transport.server=NIO
transport.heartbeat=true
transport.enableClientBatchSendRequest=true
transport.threadFactory.bossThreadPrefix=NettyBoss
transport.threadFactory.workerThreadPrefix=NettyServerNIOWorker
transport.threadFactory.serverExecutorThreadPrefix=NettyServerBizHandler
transport.threadFactory.shareBossWorker=false
transport.threadFactory.clientSelectorThreadPrefix=NettyClientSelector
transport.threadFactory.clientSelectorThreadSize=1
transport.threadFactory.clientWorkerThreadPrefix=NettyClientWorkerThread
transport.threadFactory.bossThreadSize=1
transport.threadFactory.workerThreadSize=default
transport.shutdown.wait=3
service.vgroupMapping.acuity_cloud_seata_tx_group=default
service.default.grouplist=127.0.0.1:8091
service.enableDegrade=false
service.disableGlobalTransaction=false
client.rm.asyncCommitBufferLimit=10000
client.rm.lock.retryInterval=10
client.rm.lock.retryTimes=30
client.rm.lock.retryPolicyBranchRollbackOnConflict=true
client.rm.reportRetryCount=5
client.rm.tableMetaCheckEnable=false
client.rm.tableMetaCheckerInterval=60000
client.rm.sqlParserType=druid
client.rm.reportSuccessEnable=false
client.rm.sagaBranchRegisterEnable=false
client.rm.tccActionInterceptorOrder=-2147482648
client.tm.commitRetryCount=5
client.tm.rollbackRetryCount=5
client.tm.defaultGlobalTransactionTimeout=60000
client.tm.degradeCheck=false
client.tm.degradeCheckAllowTimes=10
client.tm.degradeCheckPeriod=2000
client.tm.interceptorOrder=-2147482648
store.mode=db
store.lock.mode=file
store.session.mode=file
store.publicKey=
store.file.dir=file_store/data
store.file.maxBranchSessionSize=16384
store.file.maxGlobalSessionSize=512
store.file.fileWriteBufferCacheSize=16384
store.file.flushDiskMode=async
store.file.sessionReloadReadSize=100
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.cj.jdbc.Driver
store.db.url=jdbc:mysql://127.0.0.1:3306/acuity_seata?useUnicode=true&rewriteBatchedStatements=true
store.db.user=root
store.db.password=root
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.distributedLockTable=distributed_lock
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000
store.redis.mode=single
store.redis.single.host=127.0.0.1
store.redis.single.port=6379
store.redis.sentinel.masterName=
store.redis.sentinel.sentinelHosts=
store.redis.maxConn=10
store.redis.minConn=1
store.redis.maxTotal=100
store.redis.database=0
store.redis.password=
store.redis.queryLimit=100
server.recovery.committingRetryPeriod=1000
server.recovery.asynCommittingRetryPeriod=1000
server.recovery.rollbackingRetryPeriod=1000
server.recovery.timeoutRetryPeriod=1000
server.maxCommitRetryTimeout=-1
server.maxRollbackRetryTimeout=-1
server.rollbackRetryTimeoutUnlockEnable=false
server.distributedLockExpireTime=10000
client.undo.dataValidation=true
client.undo.logSerialization=jackson
client.undo.onlyCareUpdateColumns=true
server.undo.logSaveDays=7
server.undo.logDeletePeriod=86400000
client.undo.logTable=undo_log
client.undo.compress.enable=true
client.undo.compress.type=zip
client.undo.compress.threshold=64k
log.exceptionRate=100
transport.serialization=seata
transport.compressor=none
metrics.enabled=false
metrics.registryType=compact
metrics.exporterList=prometheus
metrics.exporterPrometheusPort=9898

  9. 导入成功后，确定下命名空间： 3cca7d98-3b1c-44d3-90e5-86abaaf0048a 下是否有1个配置文件

  10. 启动seata-server：

    shell
    参数解释：
-p 指定端口
-h 指定ip，  需要修改成`自己的ip ,切记，不能使用127.0.0.1 和localhost ！！！
-m db  存储到数据库
-m file 存储到文件

linux 或 mac
sh bin/seata-server.sh -p 8091 -h 192.168.1.34 -m db -n 1

window: 双击或者cmd下面执行：
bin/seata-server.bat -p 8091 -h 192.168.1.34 -m db -n 1
    参数解释：
-p 指定端口
-h 指定ip，  需要修改成`自己的ip ,切记，不能使用127.0.0.1 和localhost ！！！
-m db  存储到数据库
-m file 存储到文件

linux 或 mac
sh bin/seata-server.sh -p 8091 -h 192.168.1.34 -m db -n 1

window: 双击或者cmd下面执行：
bin/seata-server.bat -p 8091 -h 192.168.1.34 -m db -n 1

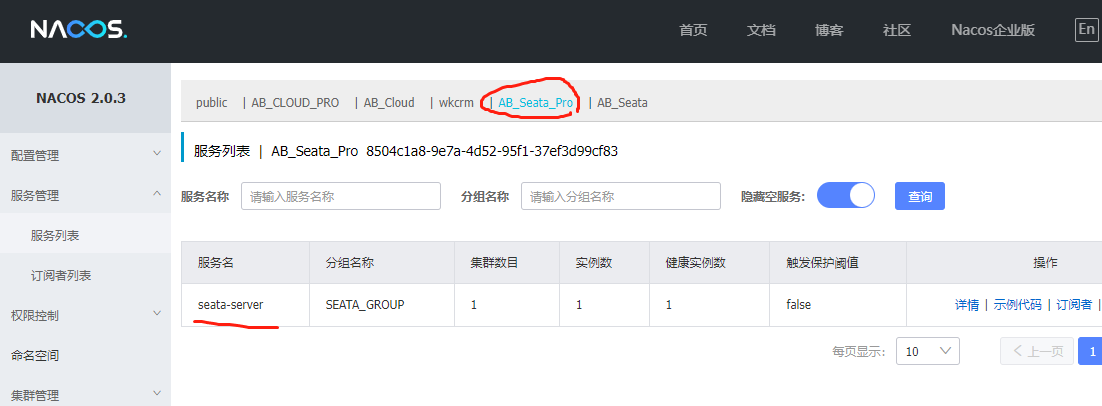

  11. 验证是否启动成功：打开nacos， 【服务管理】 -> 【服务列表】 ->【acuity-seata】-> 有一个服务名为 server-server 的服务 即表示成功

欢迎使用天源云Saas快速开发系统

Copyright © 2023 鲁ICP备2023029299号-1
